Components

Components
Code Image Description Weight (kg) Current Stock Overall Length (mm) Lead Time Ex Works (days)
24-C10-025

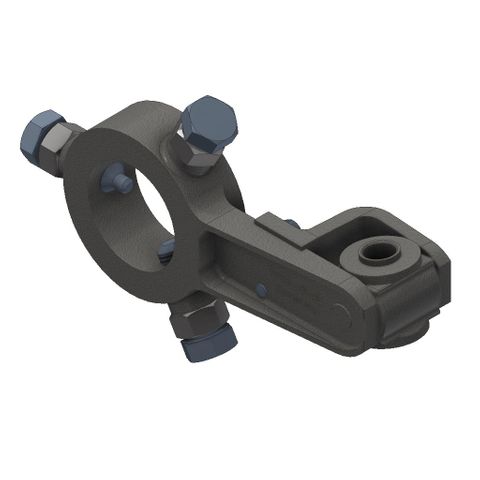

TUFF XHD Air Bag Operating Arm with Bolts
2.8
39
N/A
1
24-C10-001
TUFF XHD Air Tension Air Bag Mounting Bracket Casting
2.2
36
N/A
1
24-C10-003
TUFF XHD Air Tension Down Wear Indicator with Adjustable Stop LH
1.4
4
N/A
1
24-C10-004
TUFF XHD Air Tension Down Wear Indicator with Adjustable Stop RH
1.4
0
N/A
1
24-C10-005
TUFF XHD Air Tension Up Wear Indicator with Adjustable Stop LH
1.4
0
N/A
1
24-C10-006
TUFF XHD Air Tension Up Wear Indicator with Adjustable Stop RH
1.4
0
N/A
1
24-C10-007

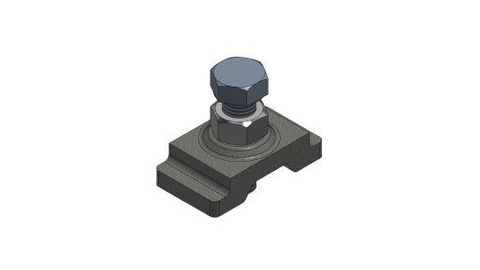

TUFF XHD Blade End Stop Casting supplied with Bolt
0.3
84
N/A
1
24-C10-009

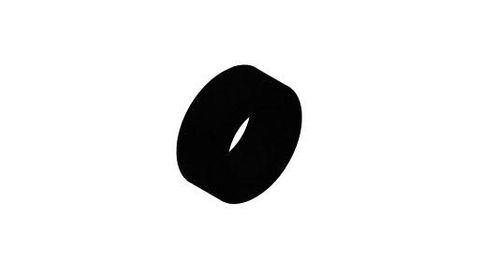

TUFF XHD Mounting Bracket Bush  FRAS
0.5
15
N/A
1
24-C10-008
TUFF XHD Mounting Bracket Casting
3.3
80
N/A
1
24-C10-010
TUFF XHD Mounting Bracket Off Set Casting
3.3
250
N/A
1
24-SC-002

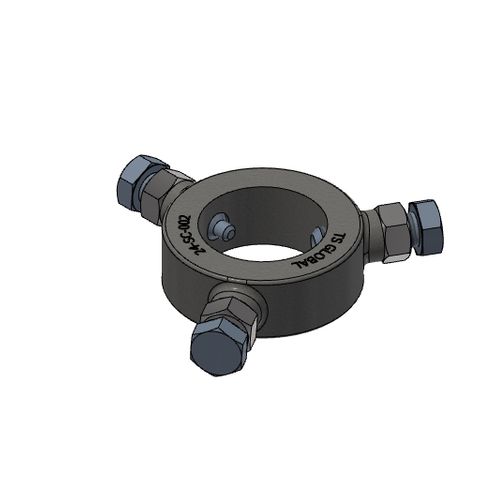

TUFF XHD Pole Locking Collar
2.2
271
1
24-C10-012

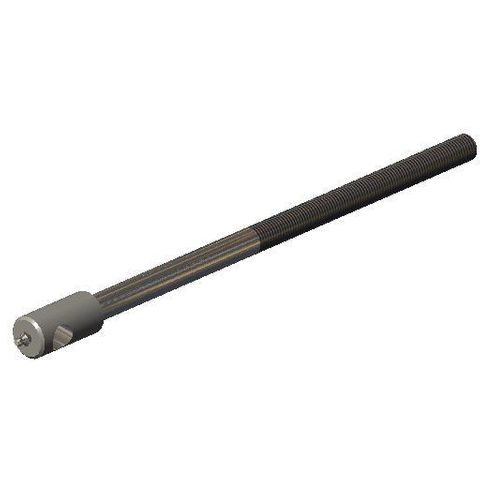

TUFF XHD Spring Tension Adjusting Rod
1.2
90
N/A
1
24-C10-013
TUFF XHD Spring Tension Adjusting Rod Arm Casting
1.2
178
N/A
1
24-C10-014
TUFF XHD Spring Tension Down Wear Indicator LH Casting
1
339
N/A
1
24-C10-015
TUFF XHD Spring Tension Down Wear Indicator RH Casting
1
390
N/A
1
24-C10-023
TUFF XHD Spring Tension Operating Arm Assembly
3.4
11
N/A
1
24-C10-024
TUFF XHD Spring Tension Operating Arm Bracket Casting
2.8
78
N/A
1
24-C10-016

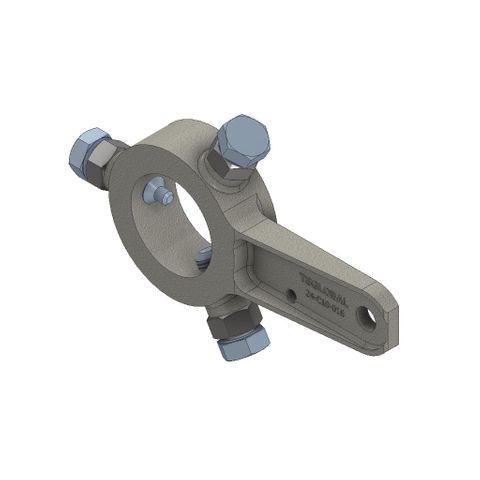

TUFF XHD Spring Tension Operating Arm Casting
3.4
2
N/A
1
24-C10-017
TUFF XHD Spring Tension Spring
0.8
49
N/A
1
24-C10-018
TUFF XHD Spring Tension Spring Bush Casting
0.8
59
N/A
1
24-C10-019

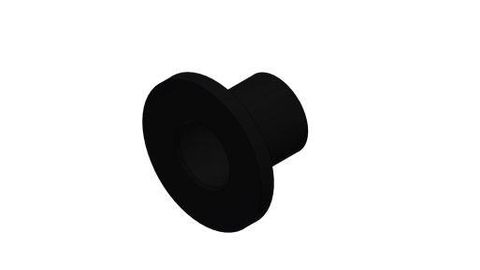

TUFF XHD Spring Tension Thread Protector Bush
0.05
9
N/A
1
24-C10-020
TUFF XHD Spring Tension Up Wear Indicator LH Casting
1
198
N/A
1
24-C10-021
TUFF XHD Spring Tension Up Wear Indicator RH Casting
1
267
N/A
1
24-C10-022
TUFF XHD Wear Indicator Arm with Bolt
2.4
31
N/A
1
