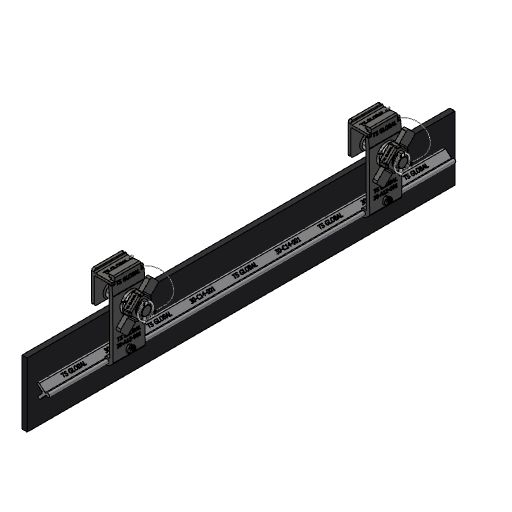

TUFF Clamp Skirt System - per metre

Stock Code:
Code: 30-10-001

Description

Manufactured in Stainless Steel the TUFF Clamp Skirt Assemblies are strong, durable and built to last. Supplied in 1 metre kits, they are available in standard or low profile. The heavy duty clamps can be set up at varying intervals to avoid interfering with external chute gussets that typically hinder skirt installations. Additional clamps can be purchased separately and installed for applications where extra clamping forces are required. TUFF Clamps are mechanically interlocked to the TUFF Clamp Skirt Rails to eliminate the possibility of the rail dropping down and damaging the belt. TUFF Clamps are simply welded into position. Skirt adjustment is made quick and easy by simply loosening the clamps to allow the rubber to drop down. Strong acme threads are utilised to provide extreme durability and the dimpled rails add positive clamping into the soft skirt rubber. Suitable for underground, hard rock and metal mining, aggregate, bulk material handling, and wood products operations. Overall height 235mm (when used with 150mm skirt) Ideal for skirt sizes 125mm - 250mm up to 25mm thick

Weight (kg):
6.2
Overall Length (mm):
1000
Lead Time Ex Works (Days):
1
Current Stock:
0
