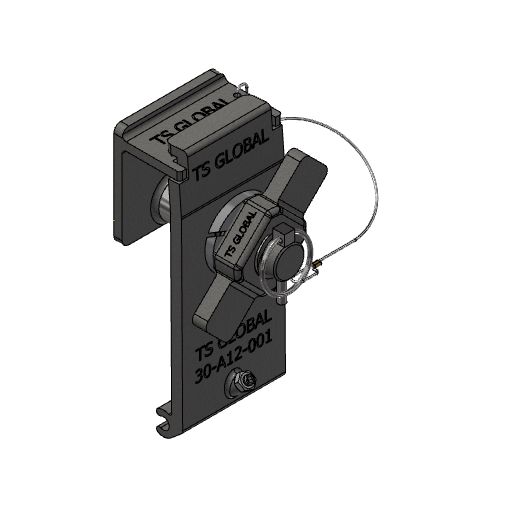

TUFF Skirt Clamp Standard Clamp Assembly

Stock Code:
Code: 30-A12-001

Description

Manufactured in Stainless Steel, TUFF Skirt Clamps are also available in low profile.The heavy duty clamps can be set up at varying intervals to avoid interfering with external chute gussets that typically hinder skirt installations. Additional clamps can be installed for applications where extra clamping forces are required. TUFF Skirt Clamps are mechanically interlocked to the TUFF Skirt Rails to eliminate the possibility of the rail dropping down and damaging the belt. TUFF Skirt Clamps are simply welded into position. Skirt adjustment is made quick and easy by simply loosening the clamps to allow the rubber to drop down. Strong acme threads are utilised to provide extreme durability and the dimpled rails add positive clamping into the soft skirt rubber. Suitable for underground, hard rock and metal mining, aggregate, bulk material handling, and wood products operations.

Weight (kg):
2
Overall Length (mm):
N/A
Lead Time Ex Works (Days):
1
Current Stock:
1898
