TUFF Water Control Unit

Stock Code:
Code: 18-10-001

Description

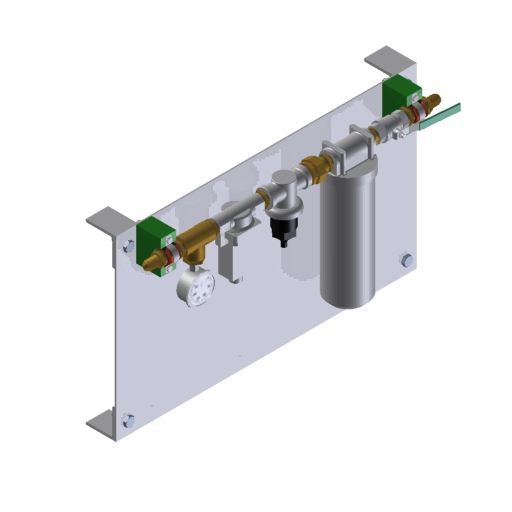

The Tuff Water Control Manifold is designed to control water quality, pressure and enhance cleaning performance of any belt cleaning system. Water spray systems improve cleaner performance by up to 75% over dry systems and the water control manifold plays a huge part in this. In addition, the benefits include low maintenance, extended service life of belt cleaners and top cover of conveyor belt along with dust suppression at transfer chutes. Automatically controls water flow to the spray nozzles to suit conveyor belt operation. Filtration device prevents blockage of nozzles. Pressure regulator allows fine-tuning of spray flow pressure to suit specific needs and maximise performance. A range of solenoid types and voltages available to suit site electrical requirements. LED indicator on all standard solenoids alerts any power fault problem. Easily integrates with existing conveyor drive controls or PLC system. Max. Pressure 1380 kPa. 150uM fabric filter Optional high grade stainless steel 560uM reusable filter

Weight (kg):
11.8
Overall Length (mm):
N/A
Lead Time Ex Works (Days):
5
Current Stock:
0
